Even opening doors and windows provides inadequate ventilation for running vehicles. Studies have shown that natural ventilation alone can leave CO levels well above OSHA's permissible exposure limits, particularly during cold weather when doors are more likely to be closed.

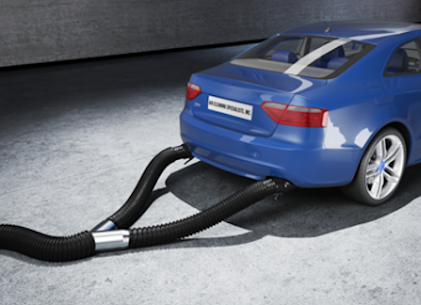

While general ventilation helps with overall air exchange, it doesn't address the fundamental problem: capturing harmful exhaust before it disperses throughout the workspace. This is where portable exhaust removal systems prove superior to other ventilation methods. By connecting to a vehicle's tailpipe through specialized adapters and hoses, these systems capture harmful emissions at the extraction point, preventing contaminants from entering breathing zones.
The Portable Advantage for Small Operations
For small shops with limited space and resources, portable exhaust fans offer distinct advantages over fixed extraction systems:
1. Mobility and Flexibility
Unlike permanent overhead or underfloor systems, portable units can be positioned exactly where needed, then moved to accommodate different vehicles or repair configurations. This flexibility is highly valuable in small shops or garages where space utilization must be maximized.
A 1HP portable exhaust fan can be easily wheeled between service bays or positioned strategically near specific repair zones. This mobility eliminates the need for multiple fixed exhaust points to save on space and initial investment costs.
2. Simple Installation and Operation
Permanent exhaust systems require significant construction work for duct installation, potentially disrupting operations and requiring building modifications that may not be feasible for tenants. Portable systems, by contrast, can be implemented immediately with minimal setup.
Modern portable exhaust fans come ready to use, requiring only a standard electrical outlet and appropriate hoses and adapters. This plug-and-play functionality means even small operations without dedicated maintenance staff can implement professional-grade ventilation solutions.
3. Scalability for Growing Businesses
Small shops often face uncertain growth trajectories, making large investments in fixed infrastructure risky. Portable exhaust systems allow for incremental scaling—operations can start with a single unit and add more as demand increases or finances allow. This adaptability is particularly important for new businesses where capital preservation is critical.
Rather than committing to an expensive fixed system that might prove inadequate or excessive as the business evolves, portable units offer the flexibility to match ventilation capacity precisely to current needs.
4. Cost-Effectiveness
The initial investment for a quality portable exhaust fan system is significantly lower than installing permanent extraction systems. Beyond purchase price, portable systems also reduce long-term operational costs through:
• Lower energy consumption, as fans are only used when and where needed
• Reduced maintenance expenses compared to extensive duct networks
• No costly building modifications or permits
• Potential tax advantages as equipment rather than facility improvements
Components of an Effective Portable Exhaust System
The Portable Exhaust Fan
For small operations handling 1-2 vehicles at a time, a 1HP portable exhaust fan provides the ideal balance between power and practicality. These units typically provide:
✓ Sufficient airflow to effectively remove exhaust from standard passenger vehicles
✓ Compact footprint to minimize space requirements
✓ Lightweight construction for easy mobility
✓ Durable construction to withstand shop environments
✓ Single-phase electrical operation with standard plugs
Shop Portable Exhaust Fans
Heat-Resistant Exhaust Hoses
Connected to the fan is the exhaust hose, which must withstand the high temperatures and corrosive compounds present in vehicle exhaust. Quality hoses like Crushproof's rubber construction offer critical advantages:
✓ Heat resistance up to 600°F for intermittent exposure
✓ Crushproof design that returns to shape after being driven over
✓ Flexibility for maneuvering in tight spaces
✓ Durability against shop chemicals and abrasion
✓ Seamless connection to both fan and tailpipe adapters
Shop Exhaust Hoses
The right hose diameter is crucial for system efficiency, typically 4" for standard passenger vehicles. Using an undersized hose creates excessive back pressure and temperature buildup, while oversized hoses reduce airflow velocity and capture effectiveness.
Tailpipe Adapters
The tailpipe adapter (or nozzle) creates a critical connection between the vehicle and the extraction system. These adapters must:
• Fit securely without damaging the vehicle
• Allow for a small air gap (approximately ½") to maintain proper temperature
• Include attachment mechanisms like hooks and chains for secure positioning
• Withstand direct contact with hot exhaust
• Match the specific tailpipe configuration (standard, oval, vertical stack, etc.)
Proper adapter selection ensures efficient capture while preventing heat damage to components and maintaining safe operating temperatures throughout the system.
Shop Tailpipe Adapters
Implementation Considerations for Small Shops
When integrating a portable exhaust fan into a small shop environment, several practical considerations ensure maximum effectiveness:
Proper Sizing and Capacity
Fan capacity should match the specific demands of vehicles being serviced. For most small shops handling passenger vehicles and light trucks, a 1HP portable unit provides sufficient extraction power. However, shops regularly servicing diesel vehicles or running extended diagnostics may require higher-capacity units.
Hose Length Optimization
While portable systems offer flexibility, excessive hose length reduces efficiency and increases strain on the fan motor. For optimal performance:
• Keep hose runs as short and straight as possible
• Avoid sharp bends that restrict airflow
• Consider fan placement to minimize required hose length
• Use appropriate diameter hose for the specific application
When hose lengths exceed 25 feet, airflow calculations should be adjusted to account for increased resistance, potentially requiring a more powerful fan unit.
Discharge Considerations
Proper exhaust discharge is essential for both effectiveness and regulatory compliance. Ensure that:
• Exhaust air is directed outside the building through appropriate outlets
• Discharge points are located away from building air intakes
• Local environmental regulations regarding air emissions are followed
• Discharge points are protected from weather ingress
Some jurisdictions have specific requirements for automotive exhaust discharge, including minimum distances from property lines or other structures. Consult local codes before finalizing any installation.
Integration with Existing Ventilation
Portable exhaust systems work most effectively when coordinated with existing general ventilation. Consider:
• Positioning portable fans to work with, not against, existing airflow patterns
• Using exhaust fans during periods of peak vehicle operation
• Ensuring makeup air is available to replace extracted air
• Maintaining general ventilation for overall air quality
Implementation Considerations for Small Shops
Real-World Applications in Small Shops
The versatility of portable exhaust fans makes them ideal for various small shop scenarios:
Independent Repair Shops
For independent mechanics with 1-3 bays, a portable exhaust fan provides professional-grade ventilation without the permanent infrastructure traditionally associated with larger operations. The ability to move the unit between bays means even a single system can serve multiple work areas as needed.
Mobile Mechanics
Technicians who provide on-site services can transport portable exhaust systems to client locations, enabling safe indoor repairs even in spaces without built-in ventilation. This capability expands service offerings and weather independence for mobile operations.
Specialty and Restoration
Shops Shops focusing on restoration or specialty vehicles often deal with irregular layouts and unique exhaust configurations. Portable systems adapt to these challenges, providing extraction for vehicles that might not align with fixed systems.
Fleet Maintenance Facilities
Small fleet operations with dedicated maintenance areas benefit from portable extraction that can be positioned precisely where vehicles are being serviced, rather than requiring vehicles to be moved to fixed extraction points.
A Practical Solution for Real-World Challenges
When properly implemented with appropriately sized system parts, portables provide professional-grade ventilation that protects technician health, ensures regulatory compliance, and contributes to a more productive working environment. The flexibility of our solutions make them excellent for the dynamic needs and space constraints of small shops.
In an industry where health hazards are an unavoidable aspect of daily operations, portable exhaust fans offer small shops an accessible way to implement professional safety standards without professional-level budgets.
You may also like:
• Choose The Right Garage Exhaust Hose in 5 Steps
• Choosing a Tailpipe Adapter
• Upgrade Your Garage with Crushproof
WARNING: Vehicle Exhaust is extremely dangerous and potentially deadly. We always recommend that any system be properly engineered to meet the specifications of your application. If you are using our Crushproof system, we recommend that you use it with a fan and as an intermittent repair solution only, not to be run for long periods of time. This hose is to be used only with naturally aspirated 4 cycle engines running at an idle and under no load. We recommend keeping any run of hose as short as possible preferably 11' or under and sized to include ambient air to cool the exhaust temperatures. This hose is designed to handle frequent temperatures up to 400° and intermittent temperatures to 600°. When using Crushproof hose for the first time, watch closely to verify that the exhaust is exiting the building as designed. IF YOU SEE ANY EXHAUST COMING BACK INTO THE SPACE, THE HOSE IS NOT BEING USED PROPERLY. TURN THE VEHICLE OFF IMMEDIATELY AND CALL OUR EXPERTS.
